VERTO

The self-closing pivot hinge system for doors

VERTO, the self-closing pivot hinge system for doors, ensures automatic, constant and controlled closing of the door with adjustable speed. The hinges have a puristic design and are suitable for quick and easy installation in any environment.

About VERTO

For light-flooded, elegant room concepts

VERTO combines technical efficiency and innovation in an exclusive hinge system that is used in many high-quality projects - in well thought-out interior concepts as well as in protected exterior areas, where maximum transparency between the interior and exterior is achieved thanks to VERTO. Even on oversized, heavy glass doors, the minimalist pivot hinge ensures elegance and a controlled, quiet door movement.

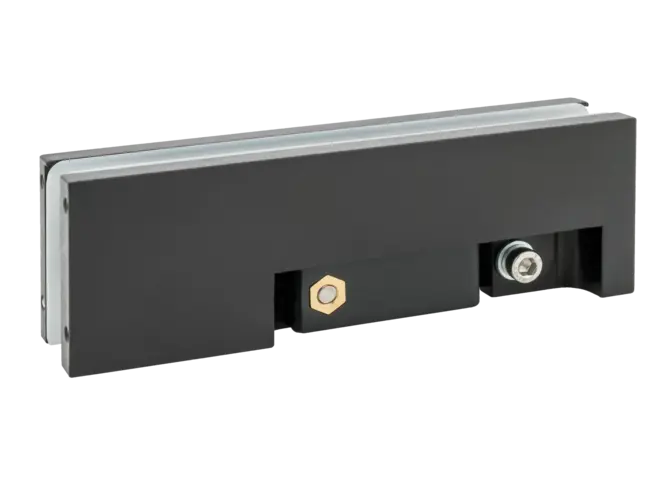

VERTO VT 107E WD

SIMONSWERK's first pivot hinge system for wood applications.

With the VERTO VT 107E WD, SIMONSWERK introduces its first self-closing pivot hinge system designed specifically for high-quality wood doors in the residential sector, extending our portfolio with the pivot door principle beyond large-format entrances.

Fully concealed once installed, it keeps the door leaf as a clean, uninterrupted surface while the hinge system recedes visually into the background.

Suited for door leaf thicknesses of 35 to 60 mm, it carries doors up to 80 kg and 1,000 mm wide, with a factory pre-set hydraulic self-closing function for smooth, controlled closing.

Discover VERTO VT 107E WD

Products

VERTO - Model variants

VERTO for double-action glass doors

With integrated self-closing function and load capacities up to 150 kg (331 lbs.)

VERTO for double-action wood doors

Hidden in the door profile for invisible, automatic closing

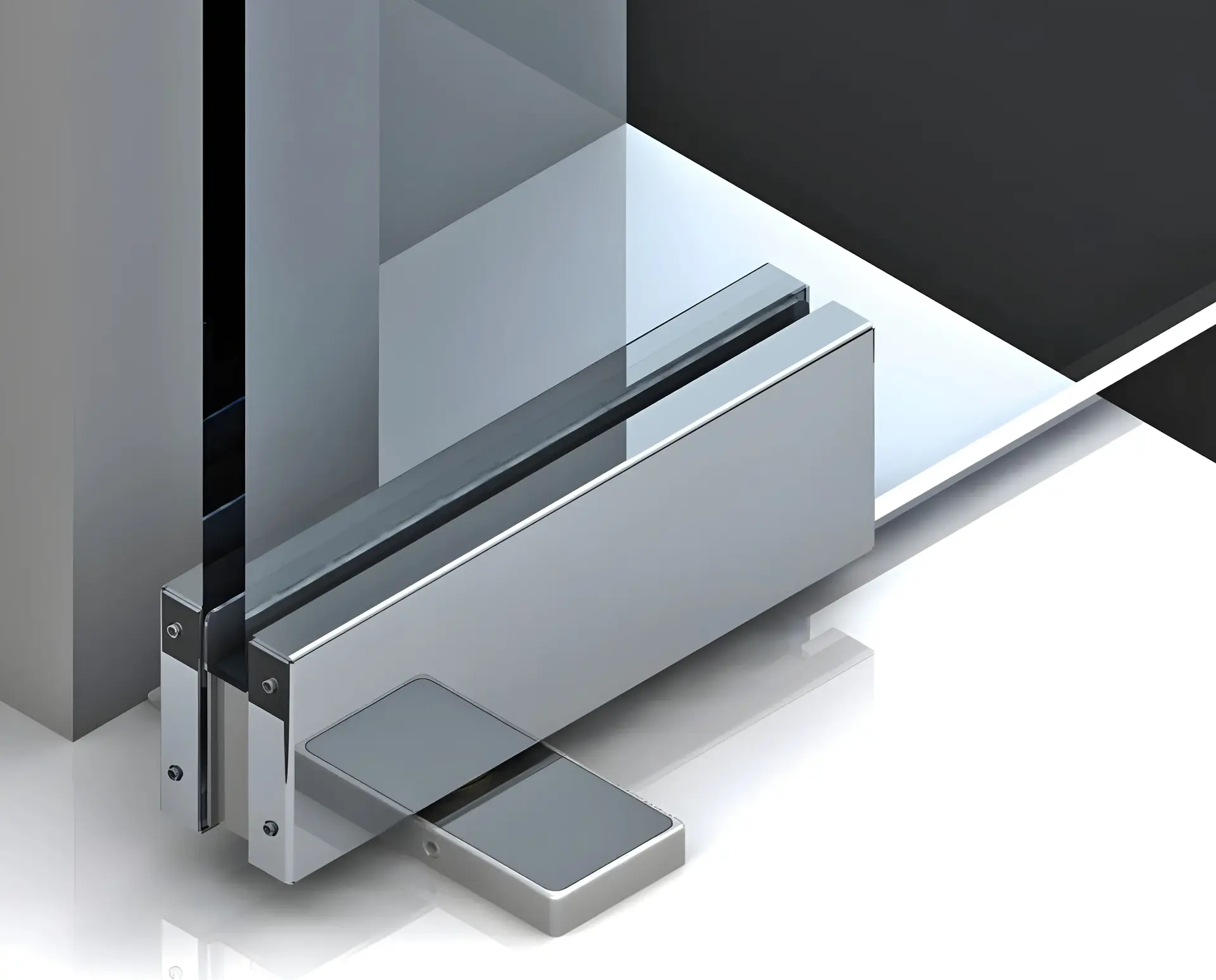

VERTO for double-action glass doors

For heavy double-action doors made of glass with integrated self-closing function convinces with the elegant, minimalist design as well as load values of up to 150 kg (331 lbs.). Partially equiped with shock absorbers and extremely strong brake function ensure controlled, low-noise opening and closing of the door.

  • Speed control system
  • Load capacities up to 150 kg (331 lbs.), max. door width 1,200 mm (47.244")
  • Glass thicknesses from 8 mm (0.315") to 19.5 mm (0.768")
  • Minimalist design
  • Model variants for interior and exterior doors
Product overview

VERTO for double-action wood doors

For double-action residential doors up to 80 kg (176 lbs.)

  • Kit of hydraulic bottom hinge and top hinge with pivot
  • Door thickness from 35-60 mm (1.375-2.362")
  • With predetermined, non-modifiable automatic closing
  • Hold open function at + 90° and - 90°
  • Automatic closing from + 80° and - 80°
  • Can also be used for single-action doors
  • Top hinge allows the reduction of the closing speed
Find out more

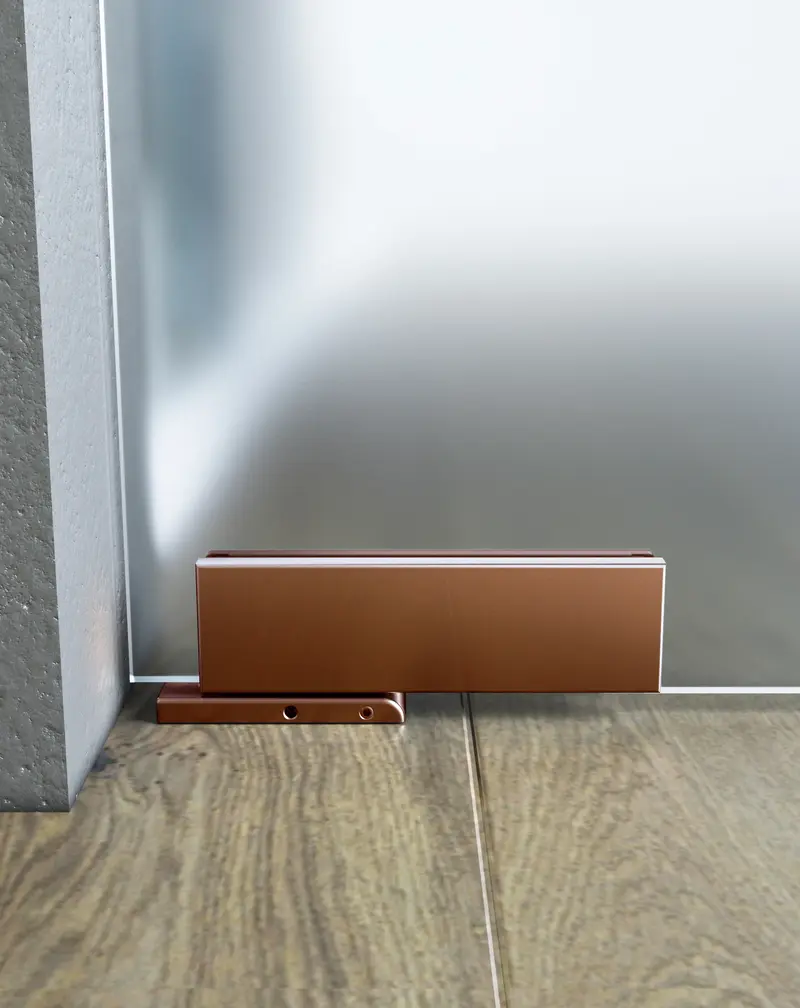

Finishes

Freely selectable colors

Any desired room impression can be emphasized with the VERTO pivot hinge thanks to a wide variety of finishes. For strong accents, for example, polished gold is the color of choice, while matte stainless steel or a finely polished finish are suitable for a restrained look.

Application areas

Versatile indoors and outdoors

Elegance, flexibility, design freedom: VERTO's purist look predestines the hinges for installation in any type of environment, both outdoors and indoors. At the same time, they support a high-quality architectural concept with the authentic door leaf materials wood and glass. The different variants are used on doors in residential areas as well as on heavy-duty doors and ensure controlled closing of the door in any case. The portfolio also includes completely concealed hinges for flush room constructions, for example in shopping centers, office and commercial buildings.

About Pivot doors

Almost weightless

With pivot doors, the hinges are almost invisible at the top and bottom instead of the sides. This creates a flowing, controlled door movement into the room and back again. Depending on the installation situation, flush installation is possible without a frame at all. Another advantage of pivot doors is the ability to realize desired dimensions - for interior and exterior doors.
