VERTO VT 107E WD

The pivot hinge system for residential wood doors

With the VERTO VT 107E WD, SIMONSWERK introduces a pivot hinge system for premium wood doors in residential interiors. Designed for room doors, room dividers and transitions, it brings the clean, pared-back aesthetic of pivot doors to interior spaces with architectural ambition.

VERTO VT 107E WD

Concealed integration.
Clear design.

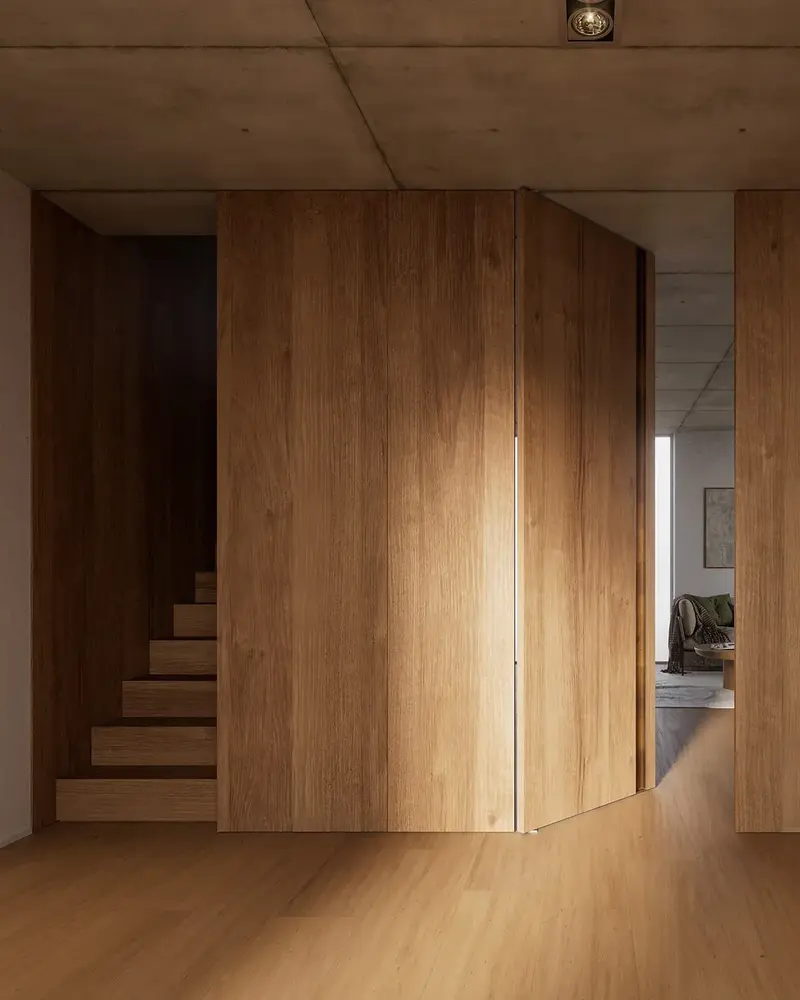

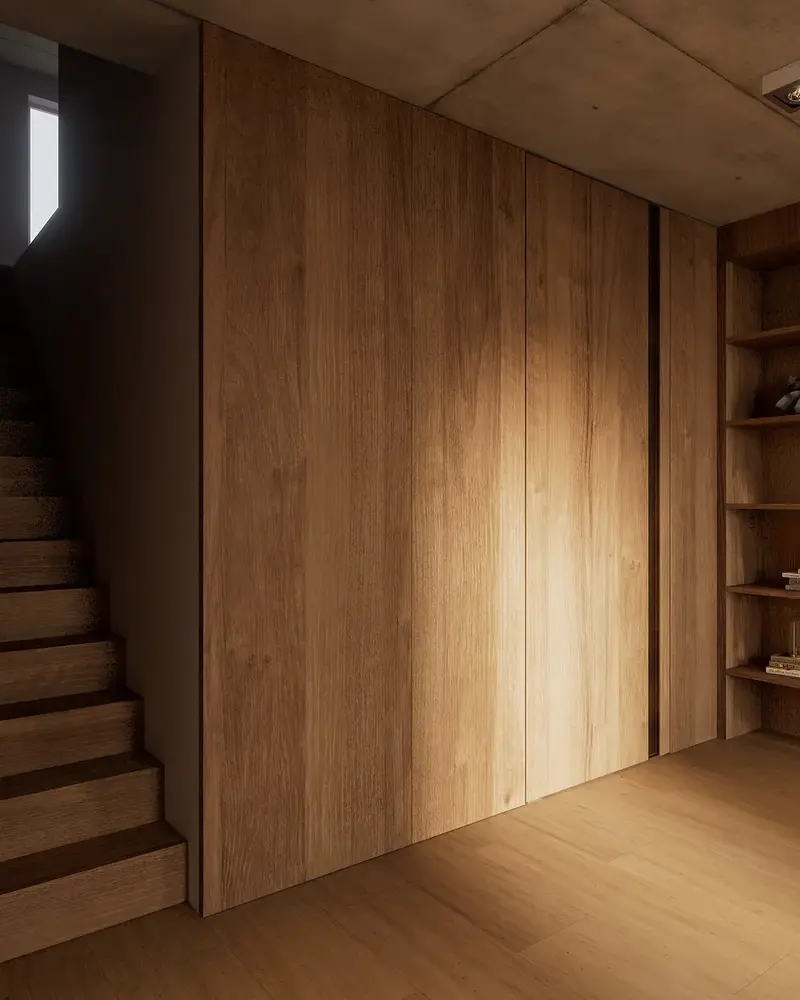

Pivot doors are defined by calm, precise lines and a door leaf that pivots around an internal axis. This design principle opens up new possibilities for residential interiors: room doors, room dividers and transitions can become distinctive architectural elements.

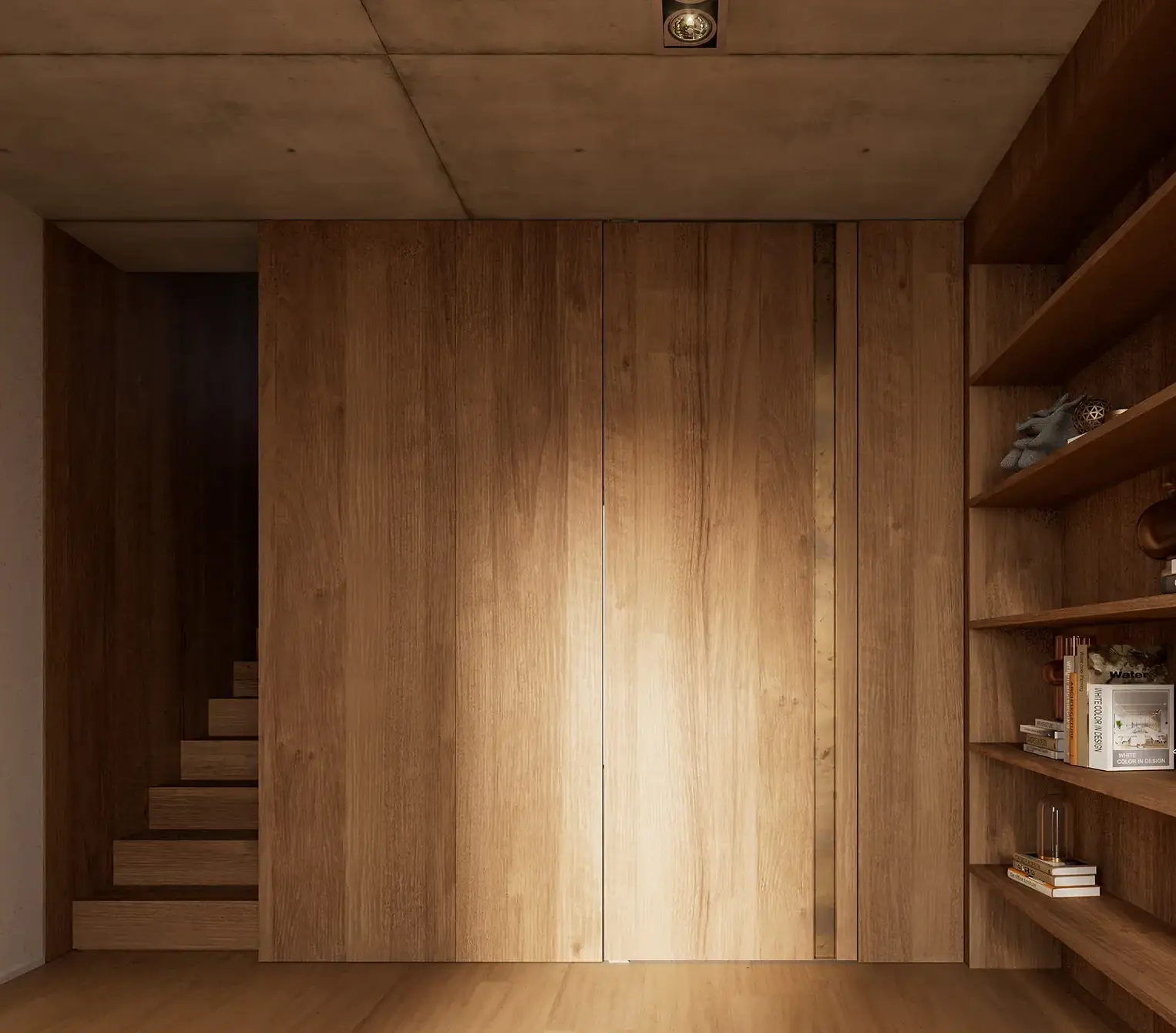

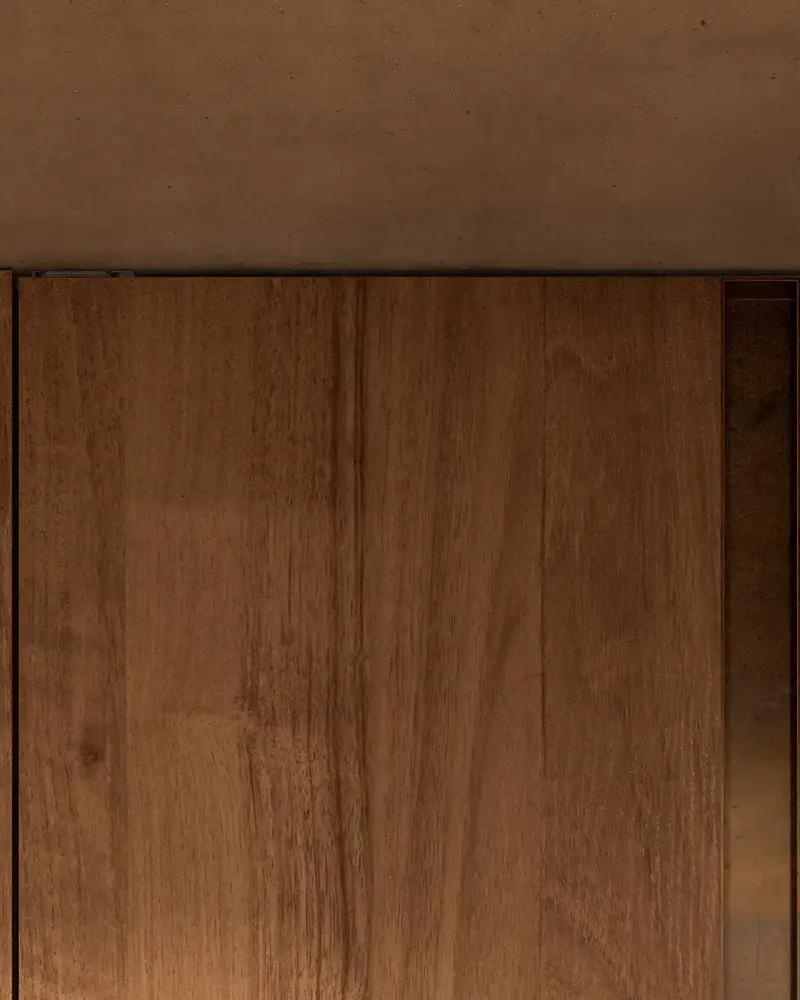

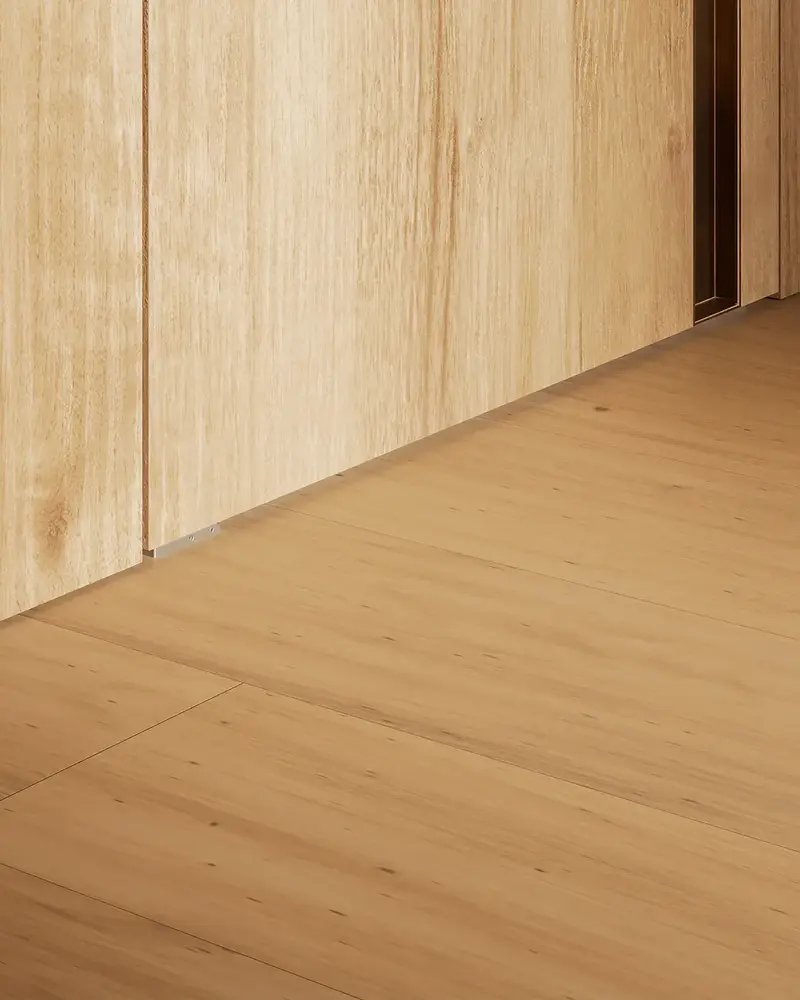

Once installed, the VERTO VT 107E WD is fully or almost completely concealed within the door. The hinge system recedes visually, allowing the door leaf surface and the room’s architectural lines to remain in focus.

Its integrated hydraulic damping system supports a smooth, controlled closing movement.

VERTO VT 107E40 WD and VT 107E42/47 WD

Advantages at a glance

The self-closing pivot hinge system for residential timber doors

  • for interior use
  • residential wood doors
  • load capacity up to 80 kg (176 lbs.)
  • door width up to 1,000 mm (39.370")
  • hydraulic controlled pivot system
  • predetermined, non-modifiable automatic closing
  • dual action 90° degrees hold-open function
  • combination with VT 107E42/47 WD allows reduction of closing speed
Product details

Model variants

VERTO VT 107E WD

for double-action residential doors up to 80 kg

VERTO VT 107E40 WD

hydraulic hinge for double-action residential doors up to 80 kg

VT 107E42/47 WD

Top hinge with pivot for double-action residential doors up to 80 kg

VERTO VT 107E WD

For double-action residential doors up to 80 kg (176 lbs.)

  • Kit of hydraulic bottom hinge and top hinge with pivot
  • Door thickness from 35-60 mm (1.378-2.362")
  • With predetermined, non-modifiable automatic closing
  • Hold open function at + 90° and - 90°
  • Automatic closing from + 80° and - 80°
  • Can also be used for single-action doors
  • Top hinge allows the reduction of the closing speed
Product overview

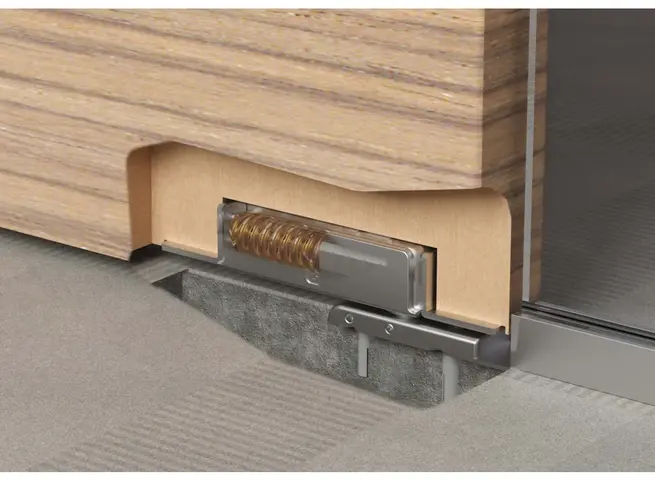

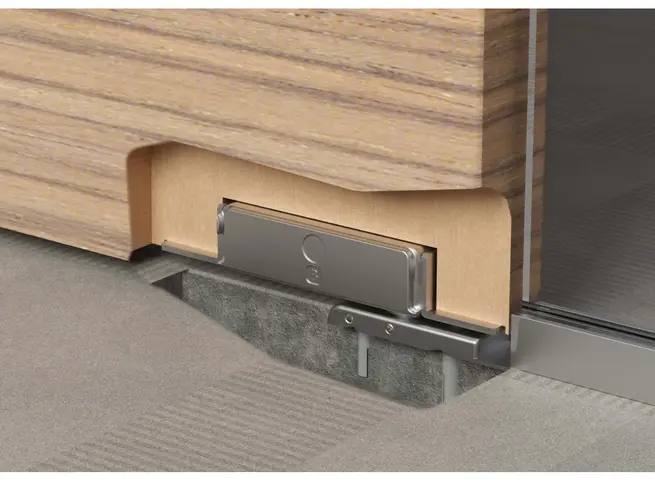

VERTO VT 107E40 WD

Hydraulic hinge for double-action residential doors up to 80 kg (176 lbs.)

  • Hydraulic hinge
  • Door thickness from 35-60 mm (1.378-2.362")
  • With predetermined, non-modifiable automatic closing
  • Hold open function at + 90° and - 90°
  • Automatic closing from + 80° and - 80°
  • Can also be used for single-action doors
  • Combining the bottom hinge with a top hinge allows the reduction of the closing speed
Product overview

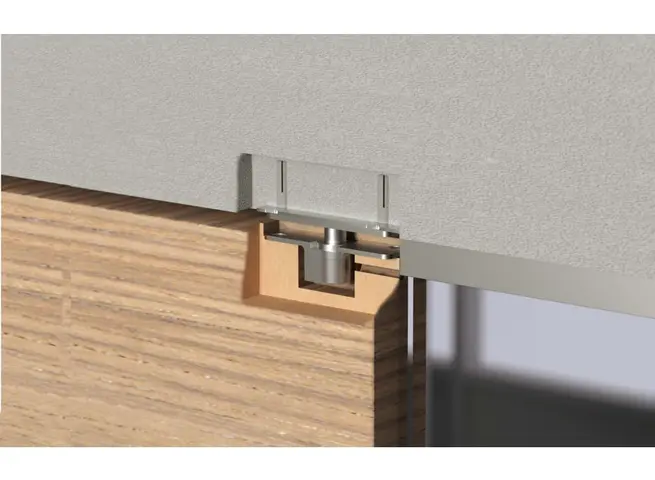

VT 107E42/47 WD

For double-action residential doors up to 80 kg (176 lbs.)

  • Top hinge with pivot
  • Door thickness from 35-60 mm (1.378-2.362")
  • Integrated brake
Product overview
